Product Details
Place of Origin: Hangzhou, CHINA
Brand Name: Manufacturer
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: 90-08004-BS1
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $2~$500 per piece
Packaging Details: CUSTOMIZED
Delivery Time: 3-4 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5k-20k pieces per day
Size(inch): |
8 |
Resolution: |
800*1280 Pixels |
Viewing Angle: |
IPS |
Active Area(mm): |
107.64*172.22 |
Module Size(mm): |
114.60*184.10*2.60 |
Interface: |
MIPI |
Operating Temperature: |
-20~70 |
Luminance(nits): |
300-1000 |
Size(inch): |
8 |
Resolution: |
800*1280 Pixels |
Viewing Angle: |
IPS |
Active Area(mm): |
107.64*172.22 |
Module Size(mm): |
114.60*184.10*2.60 |
Interface: |
MIPI |
Operating Temperature: |
-20~70 |
Luminance(nits): |
300-1000 |

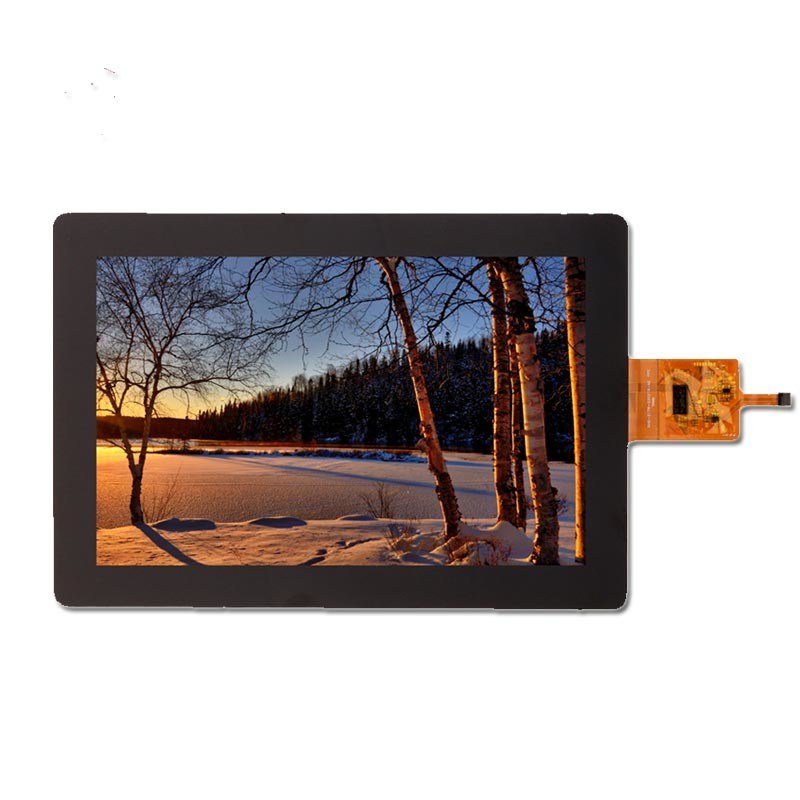

Feature Description:Wide Temperature Display 8 Inch Module TFT LCD
The 8-inch wide temperature display is a versatile and robust visual solution designed to provide accurate
and easily readable information in environments with extreme temperature variations. With its wide viewing
area and specialized temperature management, this display offers a range of features that make it ideal for
applications requiring reliable temperature monitoring and control.
Key Features:
1) Ample Viewing Area: The 8-inch display size offers a generous viewing area, allowing for the presentation of detailed temperature information with clarity and precision. The larger screen real estate provides enhanced visibility, making it easier to read temperature values, graphs, and other relevant data.
2) Wide Temperature Range: The display is specifically engineered to operate reliably across a wide temperature range. It can withstand extreme cold or hot environments without compromising its functionality or accuracy. This makes it suitable for applications such as industrial processes, outdoor monitoring, and scientific research where temperature differentials are significant.
3) High Accuracy and Precision: The wide temperature display ensures precise temperature measurement and presentation. It incorporates advanced sensors and calibration techniques to deliver accurate readings, enabling users to monitor temperature changes with confidence and make informed decisions based on reliable data.
More Details
| Feature | Description |
| Model Number | 90-08004-BS1 |
| Viewing Angle(RLUD) | 80/80/80/80 |
| View Direction | ALL |
| Interface | MIPI 31 |
| Brightness(cd/m²) | 300 |
| LED Lifetime (hrs) | 20K |
| Contrast Ratio | 1200 |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -30℃ to 80℃ |
| Application | It can be utilized in a range of applications, including manufacturing, automation, transportation, logistics, healthcare, process control, and more. |
| Touchscreen Support | Optional touchscreen functionality (PCAP, capacitive or resistive) |
Here are some classic products in our company for reference( All products can be tailored according to your requirements)
| Size (inch) |
Resolution | Viewing angle |
Active Area (mm) |
Module Size (mm) |
Interface | OP℃ | Luminance(nit) |
| 2 | 320*240 | IPS | 40.8*30.6 | 46.1*40.96*2.43 | RGB | -20~70 | 200-500 |
| 2 | 240*320 | IPS | 30.6*40.8 | 36*51.6*2.45 | MCU/RGB | -20~70 | 200-500 |
| 3.5 | 320*480 | IPS | 48.96*73.44 | 60.2*97.7*3.39 | MCU | -20~70 | 200-500 |
| 3.5 | 1240*800 | IPS | 74.4*48 | 78.15*56.05*3.75 | MIPI | -20~70 | 200-500 |
| 4.3 | 480*272 | TN | 95.04*53.86 | 105.5*67.2*3 | RGB | -20~70 | 300-600 |
| 5 | 720*1280 | IPS | 61.78*109.82 | 64.15*117.25*1.49 | MIPI | -20~70 | 300-600 |
| 7 | 1024*600 | IPS | 154.21*85.92 | 164*97*2.6 | MIPI | -20~70 | 300-600 |
| 7 | 800*480 | TN | 154.08*85.92 | 164.9*100*5.7 | RGB | -20~70 | 300-600 |
| 8 | 800*1280 | IPS | 107.64*172.22 | 112.64*181.72*2.53 | MIPI | -20~70 | 300-600 |
| 8 | 1024*600 | IPS | 196.608*114.15 | 210.7*124.6*5 | LVDS | -20~70 | 300-600 |
| 9.7 | 1024*768 | TN | 196.61*147.46 | 210.2*164.2*4.9 | LVDS | -20~70 | 300-1000 |
| 9.7 | 1280*800 | IPS | 216.96*135.6 | 229.46*149.1*2.5 | LVDS | -20~70 | 300-1000 |
| 10.3 | 720*1600 | IPS | 106.92*237.6 | 115*250.8*4.6 | MIPI | -20~70 | 300-1000 |
| 10.25 | 1280*480 | IPS | 243.84*91.44 | 255.6*105.82*1.254 | LVDS | -20~70 | 300-1000 |
| 10.4 | 1024*768 | IPS | 211.2*158.48 | 225.8*174.3*5.6 | LVDS | -20~70 | 300-1000 |
| 12.1 | 1024*768 | IPS | 245.76*184.32 | 260.5*202*10.5 | LVDS | -20~70 | 300-1000 |
| 13.3 | 1920*1080 | IPS | 293.8*165.2 | 305.2*178.2*2.6 | LVDS | -20~70 | 300-1000 |
| 15 | 1024*768 | TN | 304.128*228.096 | 326.5*253.5*12 | LVDS | -20~70 | 300-1000 |
| 15 | 1600*1200 | IPS | 304.88*228.5 | 326.58*252.98*11 | LVDS | -20~70 | 300-1000 |
| 15.6 | 1920*1080 | IPS | 344.16*193.59 | 350.70*205.27*3.00 | EDP | -20~70 | 300-1000 |
| 17.3 | 1920*1080 | IPS | 381.888*214.812 | 389.888*227.012*3.5 | LVDS | -20~70 | 300-1000 |
