Product Details
Place of Origin: Hangzhou, China
Brand Name: Manufacturer
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: 90-03401-001
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $2~$500 per piece
Packaging Details: CUSTOMIZED
Delivery Time: 3-4 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5k-20k pieces per day
Size: |
3.4 Inches |
Resolution: |
480*480 Pixels |
Brightness: |
450 Cd/m2 |
LED Lifetime (hrs): |
30k |
Shape: |
Round |
Outline Dimension(mm): |
94.9*96.95*2.18 |
Viewing Direction: |
IPS |
Active Area(mm): |
87.6*87.6 |
Size: |
3.4 Inches |
Resolution: |
480*480 Pixels |
Brightness: |
450 Cd/m2 |
LED Lifetime (hrs): |
30k |
Shape: |
Round |
Outline Dimension(mm): |
94.9*96.95*2.18 |
Viewing Direction: |
IPS |
Active Area(mm): |
87.6*87.6 |

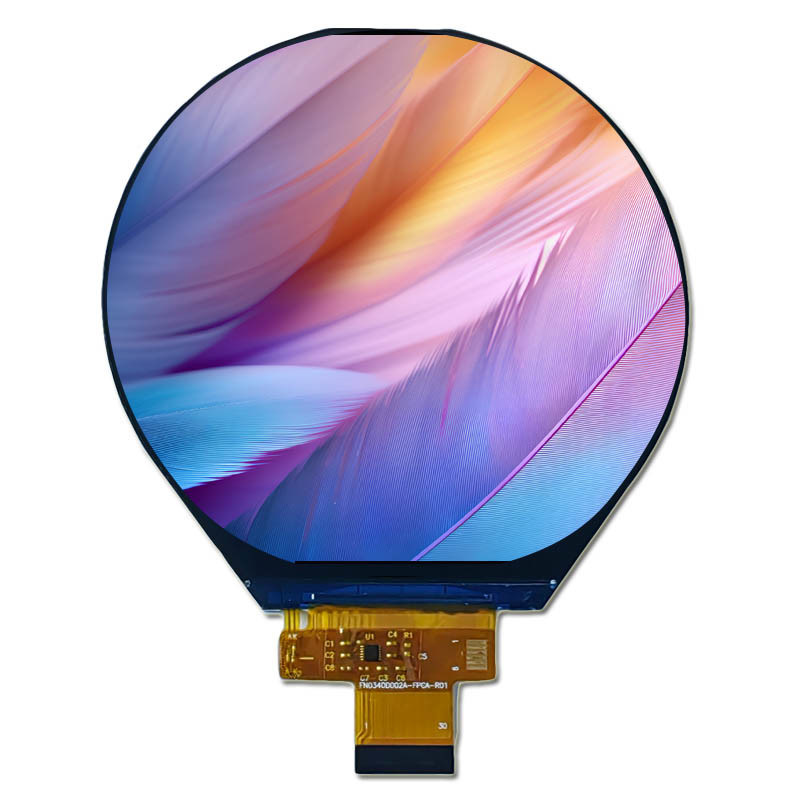

3.4 Inch Circular Display Screen 480x480 Pixel Resolution Display With MIPI Interface
The LCD display is designed with an In-plane switching (IPS) screen that provides a wide viewing angle, making it easy for the user to view the screen from any angle without any color distortion. The COG LCD Module ensures low power consumption and a compact display design, thereby making it perfect for applications with space constraints.
Our Round LCD Display Module comes with an outline dimension of 94.9*96.95*2.18mm, making it easy to integrate into any design. It is designed to withstand harsh environmental conditions and has a storage temperature range of -30℃ to 80℃. This feature makes it ideal for outdoor applications where the temperature can vary significantly.
The Round LCD Display Module is easy to install and comes with a user-friendly interface that makes it easy to use. It is designed to be highly reliable and long-lasting, making it a great investment for industrial applications.
In conclusion, our Round LCD Display Module is an excellent choice for industrial LCD monitors. With its high-resolution, wide viewing angle, low power consumption, and compact design, it is perfect for applications with space constraints. Its ability to withstand harsh environmental conditions makes it an ideal choice for outdoor applications. Invest in our Round LCD Display Module today and experience the best in class display quality.
| Shape | Round |
| Brightness | 450 Cd/m2 |
| Contrast Ratio | 1000:1 |
| Interface | MIPI |
| Operating Temperature | -20℃ To 70℃ |
| Outline Dimension(mm) | 94.9*96.95*2.18 |
| Active Area(mm) | 87.6*87.6 |
| Size | 3.4 Inches |
| Resolution | 480*480 Pixels |
| Viewing Angle | 85/85/85/85 |
The Round LCD Display Module is versatile and can be used for different occasions and scenarios. It is perfect for industrial LCD display applications, such as control systems, automation systems, and test equipment. The product's IPS screen technology ensures that the display is crystal clear, making it ideal for reading text, viewing images, and watching videos.
The product's round shape and outline dimensions of 94.9*96.95*2.18mm make it a suitable fit for any display application, regardless of the space constraints. The 2.1 inches display size is perfect for small-scale displays, such as handheld devices and portable monitors.
The Round LCD Display Module connects via MIPI interface, making it compatible with a wide range of devices. The product's supply ability of 5k-20k pieces per day ensures a steady supply of the product, even for large-scale projects.
Size: From 1.77 inch to 17 inch
Imteraface: SPI ；MCU; RGB; MIPI; LVDS; EDP
Brightness: 200-1000 nits
Lifetime: 10k-50k
Touch Screen: PCAP; Capacitive touch screen, Resistive Touch screen
Wide Temperature: -40℃~85 ℃
Our Round LCD Display Module product comes with comprehensive technical support and services to ensure you have a hassle-free experience using it. Our team of experts is always available to assist you with any technical queries and troubleshoot any issues you may encounter. Our services include installation assistance, firmware upgrades, and customization options to suit your specific requirements. We also offer product training for your team to ensure optimal usage and maintenance. Our aim is to provide you with a high-quality product and exceptional customer service, every step of the way.
Some Classic Products in our company for reference( All products can be tailored according to your requirements)
| Size (inch) |
P/N | Resolution | Viewing angle |
Active Area (mm) |
Module Size (mm) |
Interface | OP℃ | Luminance(nit) |
| 2 | 90-02005-001 | 480*360 | IPS | 40.8*30.6 | 46.1*40.96*2.54 | RGB | -20~70 | 200-500 |
| 2 | 90-02009-001 | 240*320 | IPS | 30.6*40.8 | 36*51.6*2.45 | MCU/RGB | -20~70 | 200-500 |
| 3.5 | 90-03507-001 | 320*480 | IPS | 48.96*73.44 | 60.2*97.7*3.39 | MCU | -20~70 | 200-500 |
| 3.5 | 90-03521-BH1 | 1240*800 | IPS | 74.4*48 | 78.15*56.05*3.75 | MIPI | -20~70 | 200-500 |
| 4.3 | 90-04304-001 | 480*272 | TN | 95.04*53.86 | 105.5*67.2*3 | RGB | -20~70 | 300-600 |
| 5 | 90-05024-001 | 720*1280 | IPS | 61.78*109.82 | 65.35*118.80*1.65 | MIPI | -20~70 | 300-600 |
| 7 | 90-07018-IH2 | 1024*600 | IPS | 154.21*85.92 | 164*97*2.6 | MIPI | -20~70 | 300-600 |
| 7 | 90-07005-001 | 800*480 | TN | 154.08*85.92 | 164.9*100*5.7 | RGB | -20~70 | 300-600 |
| 8 | 90-08004-BS1 | 800*1280 | IPS | 107.64*172.22 | 114.60*184.10*2.60 | MIPI | -20~70 | 300-600 |
| 9 | 90-09001-BH1 | 1024*600 | IPS | 196.608*114.15 | 210.7*124.6*5 | LVDS | -20~70 | 300-600 |
| 9.7 | 90-09701-001 | 1024*768 | TN | 196.61*147.46 | 210.2*164.2*4.9 | LVDS | -20~70 | 300-1000 |
| 10.1 | 90-10116-IH1 | 1280*800 | IPS | 216.96*135.6 | 229.46*149.1*2.5 | LVDS | -20~70 | 300-1000 |
| 10.3 | 90-10301-BS3 | 720*1600 | IPS | 106.92*237.6 | 115*250.8*4.6 | MIPI | -20~70 | 300-1000 |
| 10.25 | 90-10251-001 | 1280*480 | IPS | 243.84*91.44 | 255.6*105.82*1.254 | LVDS | -20~70 | 300-1000 |
| 10.4 | 90-10402-001 | 1024*768 | IPS | 211.2*158.48 | 225.8*174.3*5.6 | LVDS | -20~70 | 300-1000 |
| 12.1 | 90-12101-HH1 | 1024*768 | IPS | 245.76*184.32 | 260.5*202*10.5 | LVDS | -20~70 | 300-1000 |
| 13.3 | 90-13301-BH1 | 1920*1080 | IPS | 293.8*165.2 | 305.2*178.2*2.6 | LVDS | -20~70 | 300-1000 |
| 15 | 90-15001-AH1 | 1024*768 | TN | 304.128*228.096 | 326.5*253.5*12 | LVDS | -20~70 | 300-1000 |
| 15 | 90-15002-BH1 | 1600*1200 | IPS | 304.88*228.5 | 326.58*252.98*11 | LVDS | -20~70 | 300-1000 |
| 15.6 | 90-15601-AH2 | 1920*1080 | IPS | 344.16*193.59 | 350.70*205.27*3.00 | EDP | -20~70 | 300-1000 |
| 17.3 | 90-17301-BH1 | 1920*1080 | IPS | 381.888*214.812 | 389.888*227.012*3.5 | LVDS | -20~70 | 300-1000 |
